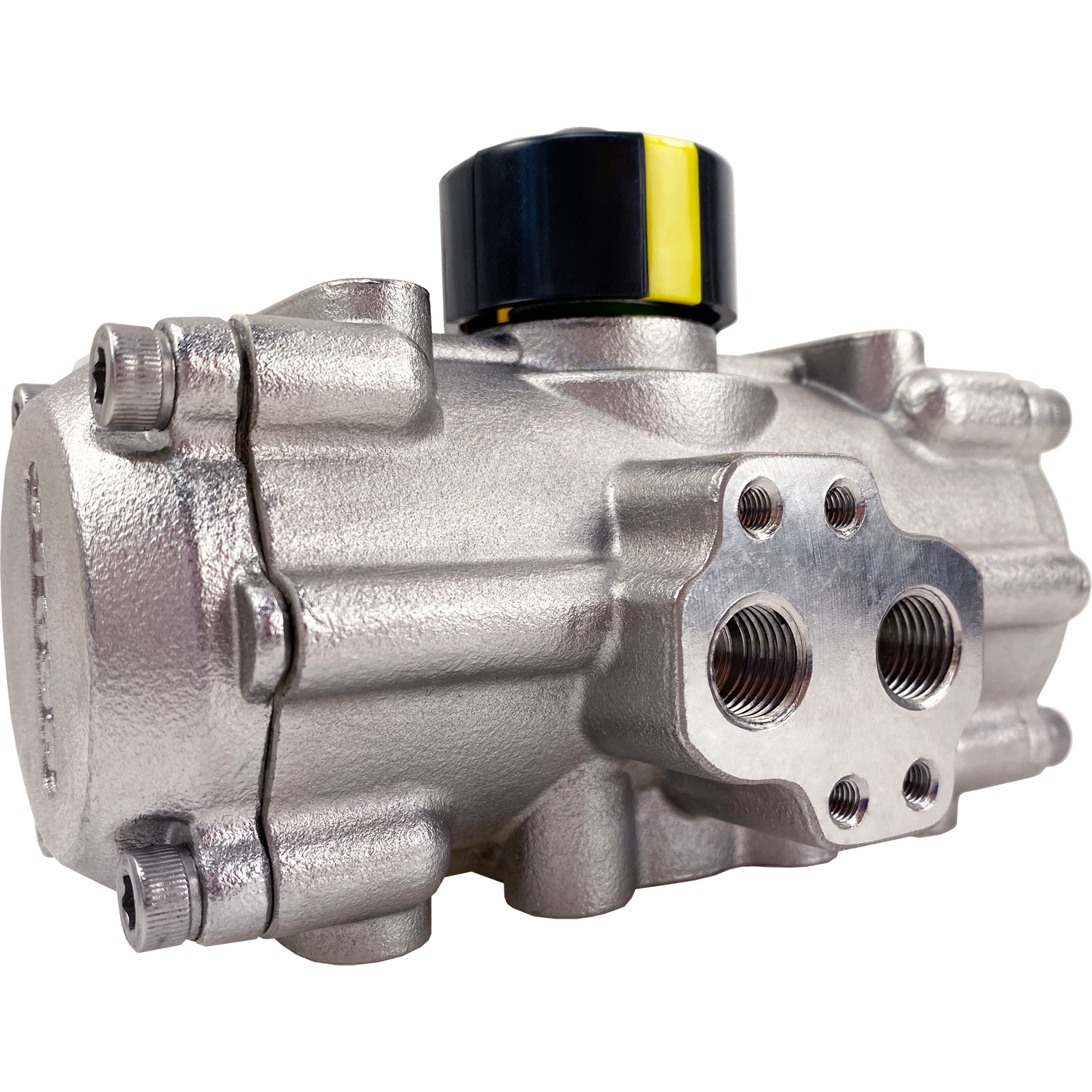

Stainless Steel Double Acting Air Actuator DA52

Stock #: 576052
Series: 5760
List Price: $480
Price: $384.00
Buy 3 or more for $345.60 each
Usually Ships: Same Day
-
+
Valworx 576052 stainless steel rack and pinion air actuators are typically used to operate quarter turn ball valves and other quarter turn applications requiring high corrosion resistance and/or sanitation. Rugged IP66 construction is suitable for washdown applications. Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Double acting actuators use air pilot pressure to open and air pilot pressure to close. The pilot air is typically controlled by a 4-way type manual or solenoid valve.

An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.

Stainless Pneumatic Actuator Standard Features

  • Pre-lubricated and tested to minimum 1 million cycles
  • Rugged IP66 (NEMA4/4X) enclosure suitable for washdown
  • ISO5211 valve mounting pad
  • Highly visible valve position indicator
  • Dry or lubricated pilot air
  • 316 Stainless steel body with electro-polished externals
  • 316 Stainless steel end covers, shaft and pistons
  • Namur mounting pad for direct mounted solenoid valves
  • VDI/VDE 3845 mounting for top mounted accessories

  • Options (see Accessories tab)
    TypeDouble Acting Pneumatic Actuator
    SizeDA52
    Torque177.0 inch lbs @ 80 PSI see torque chart (20.0 Nm @ 5 Bar)
    Rotation90° (quarter turn)
    Pilot MediaFiltered, dry or lubricated compressed air
    Pilot Air Pressure120 PSI max. (8 Bar)
    Pilot Air Connections1/4" NPT
    Pilot Solenoid MountingNamur mounting pad per VDI/VDE 3845
    Valve Mounting ISO5211F04/F05
    Output Drive 11mm female double square
    BodyASTM 316 Stainless steel
    End CoversASTM 316 Stainless steel
    Shaft316 Stainless steel
    SealsNBR
    Position IndicatorPlastic
    Temperature Range -4 to 175°F (-20 to 80 °C)
    Rotation Adjustment+/- 5° each direction
    Top Accessory MountingNamur mounting per VDI/VDE 3845
    Stainless Steel Direct Mount Solenoid Valves
    Direct Mount Stainless Steel Solenoid Valve 120V 50/60Hz
    Direct Mount Stainless Steel Solenoid Valve 120V 50/60Hz Stock #: 579200
    Usually Ships: Same Day
    Price: $193.60

    Buy 10 or more for $174.24 each

    Quantity :
    Direct Mount Stainless Steel Solenoid Valve 24 VDC
    Direct Mount Stainless Steel Solenoid Valve 24 VDC Stock #: 579202
    Usually Ships: Same Day
    Price: $193.60

    Buy 10 or more for $174.24 each

    Quantity :
    ISO DIN Plug with 16ft Cable for Solenoid Valves
    ISO DIN Plug with 16ft Cable for Solenoid Valves Stock #: 588013
    Usually Ships: Same Day
    Price: $27.08

    Buy 10 or more for $24.37 each

    Quantity :
    Stainless Steel Limit Switch
    Stainless Steel Actuated Valve Limit Switch IP67/NEMA 4X
    Stainless Steel Actuated Valve Limit Switch IP67/NEMA 4X Stock #: 579910
    Usually Ships: Same Day
    Price: $254.40

    Buy 6 or more for $228.96 each

    Quantity :
    Electro-Pneumatic Positioner
    Electro-Pneumatic Positioner 4-20mA Input
    Electro-Pneumatic Positioner 4-20mA Input Stock #: 529960A
    Usually Ships: Same Day
    Price: $598.40

    Buy 3 or more for $538.56 each

    Quantity :
    We provide 3D CAD models in Solidworks or STEP file formats for most of our Valworx products.

    Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
