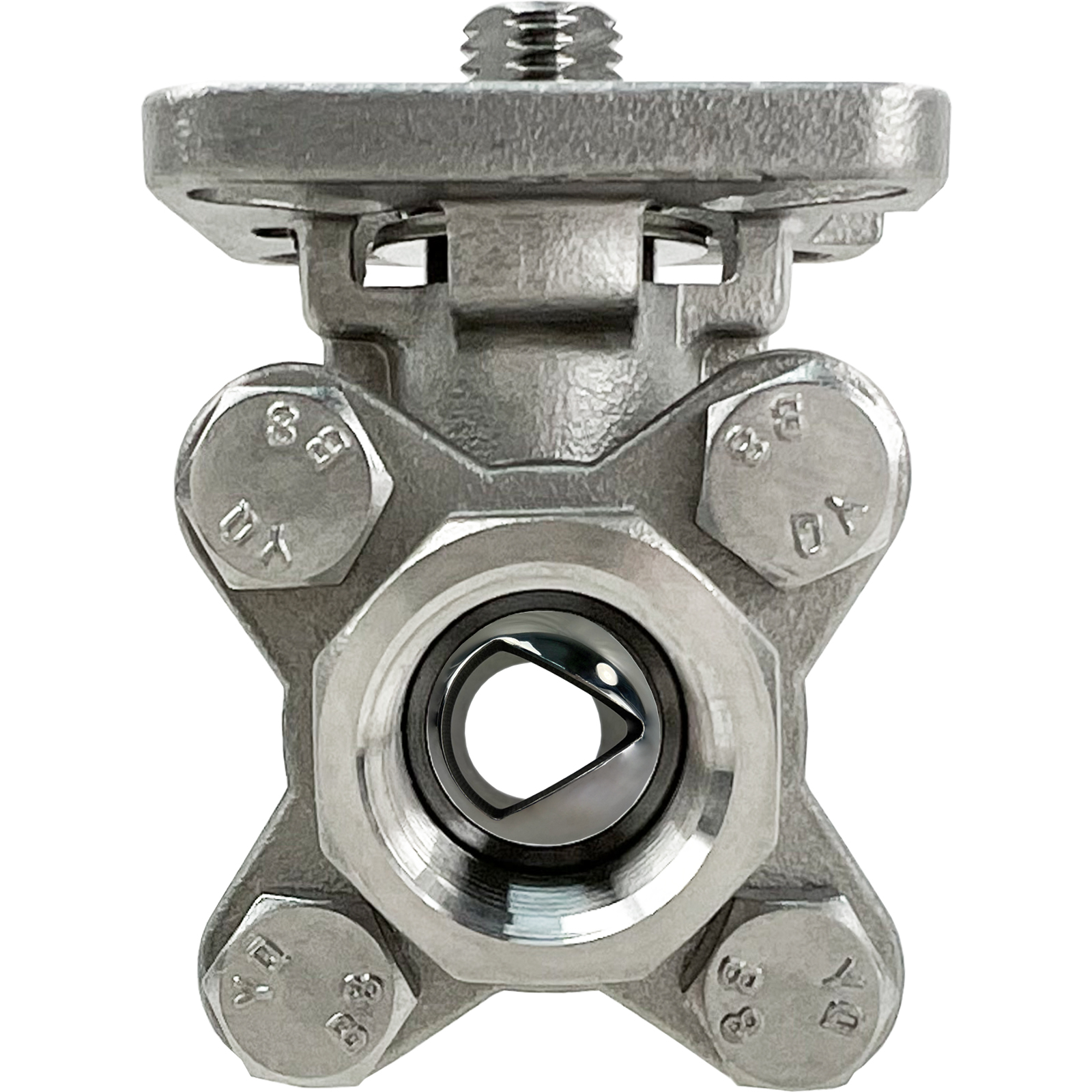

Valworx 556102 stainless steel V-port ball valves are designed for applications requiring precise flow control. Suitable for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance.
V-port valves are intended for use with Valworx
5610 Multi-Voltage DPS Positioner, Valworx
5618 EPS Positioner or
5818 Explosion Proof Positioner positioning actuators. When purchased as an actuated assembly, select the V-port option from the Accessories tab.
Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
60° V-port machined 316 stainless steel ballSame pressure rating as Valworx full port valves316 Stainless Steel Body and StemBlow Out Proof StemRTFE Ball Seats Extend Cycle Life and Reduce TorqueTriple PTFE/Viton Stem Seal Design, Live LoadedFor use with Valworx EPS positioning actuatorsActuator Ready ISO5211 direct mounting padIncludes 304 stainless steel locking handle
Type | Manual V-Port Ball Valve |
Pipe Size | 1/4" NPT female |
Port Size | V- port, 60°,Cv 4.5 |
Pressure (Max) | 1000 PSI (see P/T chart), 125 PSI saturated steam, vacuum service to 29" Hg |
Temperature Range | -4 to 392 °F (-20 to 200 °C) |
Body/Ball | 316 stainless steel (ASTM A351 CF8M) |
Stem | 316 stainless steel |
Ball Seats | RTFE (reinforced Teflon) |
Stem Seals | PTFE/ Viton (live loaded and adjustable) |
Bolts/Nuts | 304 stainless steel |
ISO5211 Mount | F03/F05, 9mm square stem |
Max Fluid Velocity | 10 feet per second |
