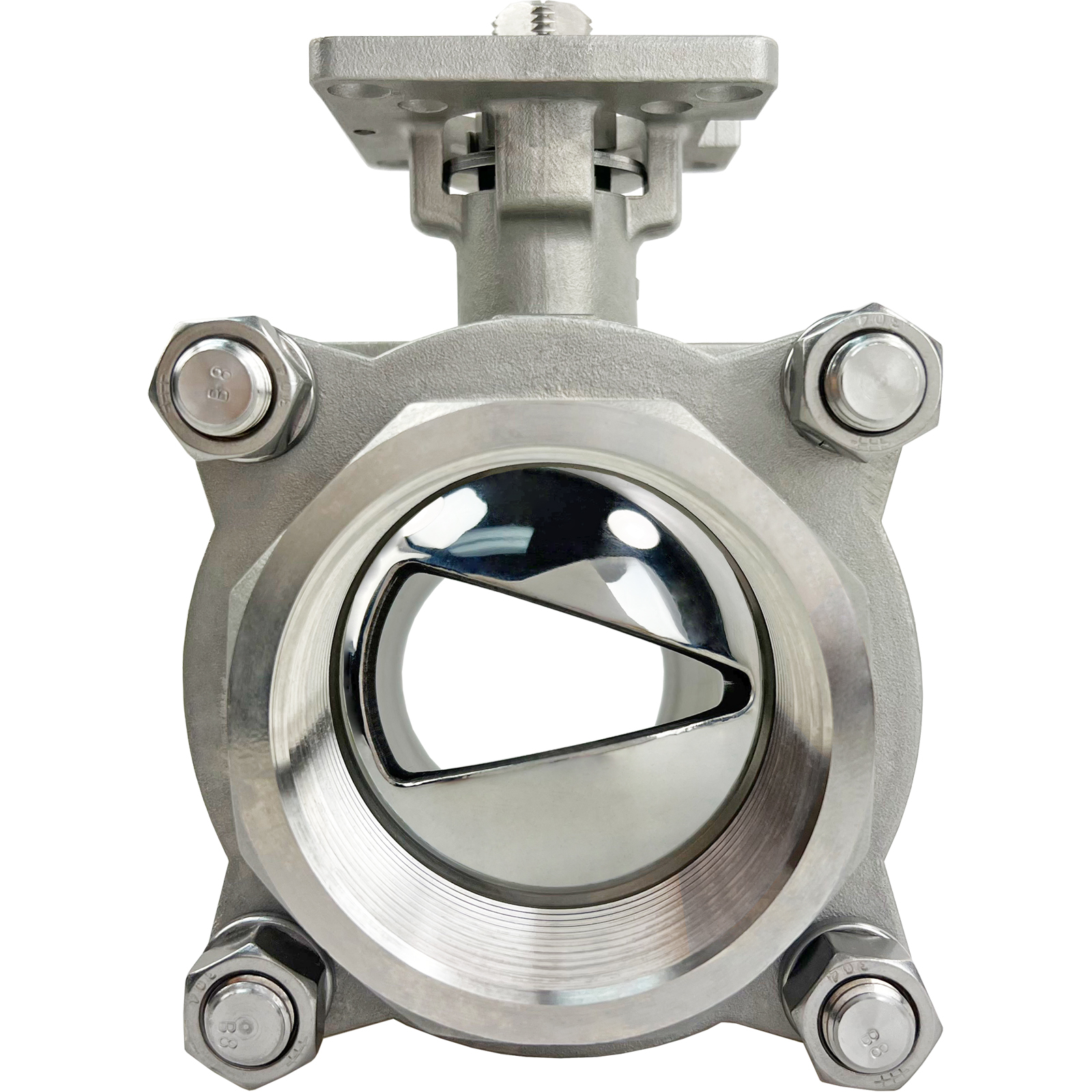

3" V-Port Ball Valve - 30°

Stock #: 553124
Brand: Valworx
Series: 5531
List Price: $1364.00
Price: $1,091.20
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 553124 stainless steel V-port ball valves are designed for applications requiring precise flow control. Suitable for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance.

V-port valves are intended for use with Valworx 5618 EPS Positioner or 5818 Explosion Proof positioning actuators. When purchased as an actuated assembly, select the V-port option from the Accessories tab.

Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

  • 30° V-port machined 316 stainless steel ball
  • Same pressure rating as Valworx full port valves
  • 316 Stainless Steel Body and Stem
  • Blow Out Proof Stem
  • RTFE Ball Seats Extend Cycle Life and Reduce Torque
  • Triple PTFE/Viton Stem Seal Design, Live Loaded
  • For use with Valworx EPS positioning actuators
  • Actuator Ready ISO5211 Direct Mounting Pad
  • TypeManual V-Port Ball Valve
    Pipe Size3" NPT female
    Port SizeV- port, 30°,Cv 53.9
    Pressure (Max)800 PSI (see P/T chart),
    125 PSI saturated steam, vacuum service to 29" Hg
    Temperature Range-4 to 392 °F (-20 to 200 °C)
    Body/Ball316 stainless steel (ASTM A351 CF8M)
    Stem316 stainless steel
    Ball SeatsRTFE (reinforced Teflon)
    Stem SealsPTFE/ Viton (live loaded and adjustable)
    Bolts/Nuts304 stainless steel
    ISO5211 MountF07/F10, 17mm square stem
    Max Fluid Velocity10 feet per second
    We provide 3D CAD models in Solidworks or STEP file formats for most of our Valworx products.

    Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
