Manual Limit Switch, F05/F07 11mm Stem
Stock #
529915
Series
5299
List Price: $208.00
Price: $166.40
- Buy 3 for $149.76 each
Usually Ships: 9- 16 Weeks

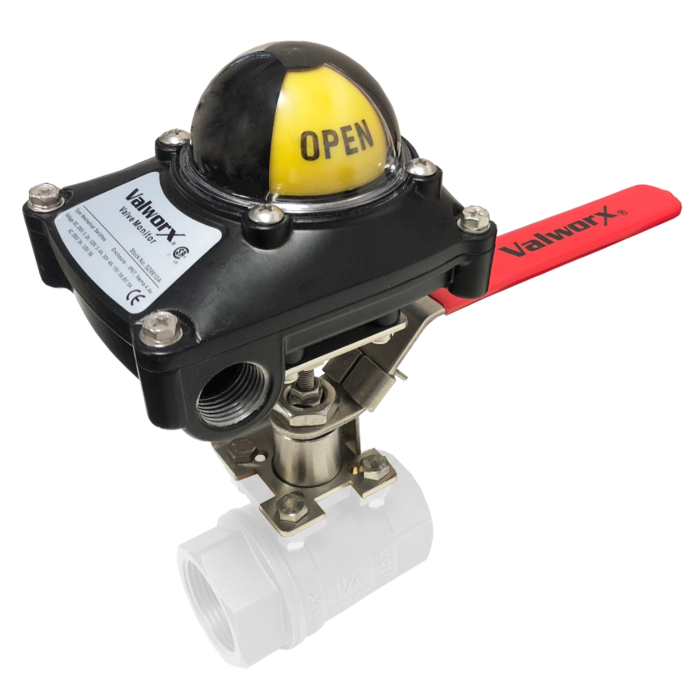

Valworx 529915 weatherproof compact valve monitor provides both electrical and visual indication of the valve position for manual valves. Limit switch has two SPDT switches and a highly visual dome style indicator used to confirm the "Open" or "Closed" valve position. Manual limit switch mounts to most Valworx brand manual valves with 11mm stems. May mount to other brand valves with standard ISO direct mount pad. INSTALLATION INCLUDED when ordered with a Valworx manual valve.
| Enclosure | Aluminum die-cast housing, polyester powder coated |
|---|---|
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Two 1/2" NPT female conduit, terminal strip (8 contacts) |
| Valve Position Indicator | Dome Indicator (red-closed position, yellow-open position) |
| Approvals | CSA US and C, CE (UL rated switches) |
| Fasteners | Stainless steel |
| Limit Switches | 2 SPDT Honeywell mechanical switches - UL rated |
| Mounting Bracket | Stainless Steel, fits 11mm stem, F05/F07 mounting pad |
| Output Shaft | Stainless Steel |
| Switch Rating | AC 125V 5Amps, 250V 3A, DC 250V 0.2A, 30V 4A |
Accessories
-
7-Conductor Cable for 5618 Series Electric Actuators- 16ftStock #: 588009AUsually Ships: Same DayPrice: $82.38
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
