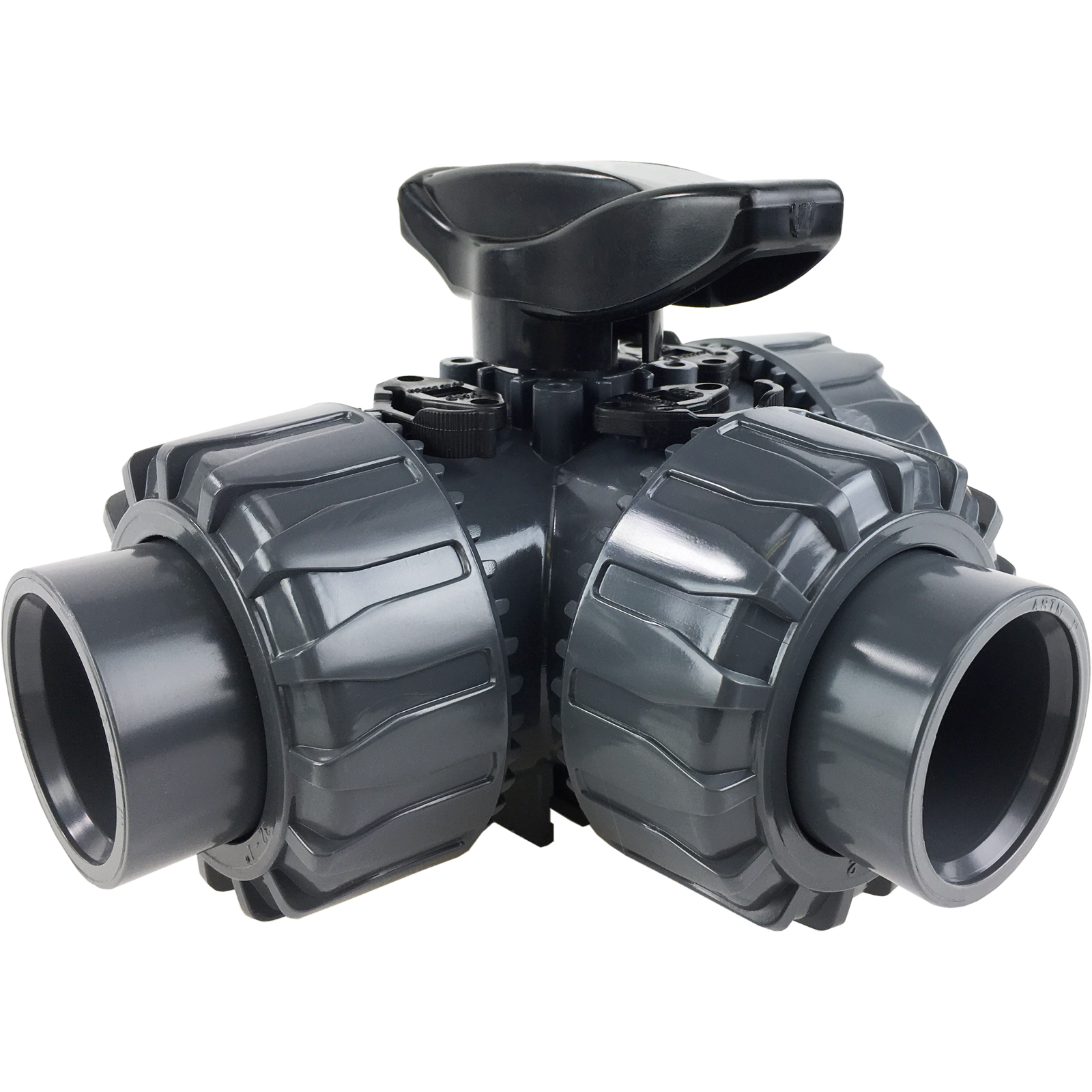

Valworx 551433 True Union 3-way T-port PVC ball valves are used as a flow diverter or mixing function. Corrosion resistant valves are suitable for use with water and other liquid media compatible with the materials of construction (not recommended for use with compressed air or gas). Ideal for industrial applications and where NSF certified construction is required for potable/drinking water. The handle can be rotated to any one of four positions, each having a different flow paths. Four (4) energized Teflon ball seats allows for full pressure at any port, lowers the required operating torque and extends the cycle life. Dual stem seals and adjustable ball seat carriers contribute to a leak free design. Machined ball and stem connection after molding provides a precision fit. Unique union nut locking device prevents back-off due to vibration or thermal cycling. Valves are actuator ready with optional ISO5211 mounting kit.
Pressure rated 232 PSI (16 Bar)
Full Port design
Four ball seat design allows full pressure at any port
Energized PTFE ball seats for lower torque and extended life
Leak free dual stem seal design
Union nut locking device prevents back-off
Micro-adjustable ball seat carrier
Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
Includes IPS glue sockets and NPT end connectors
3-way T-port Diverter or Mixing
1 inch (both NPT and Socket end connectors included)
Full Port, Cv 17
232 PSI at 73 °F liquid only, no air or gas (see P/T chart)
We provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email email@example.com to request the specific files you need. Include the stock number and any accessories with your request.
