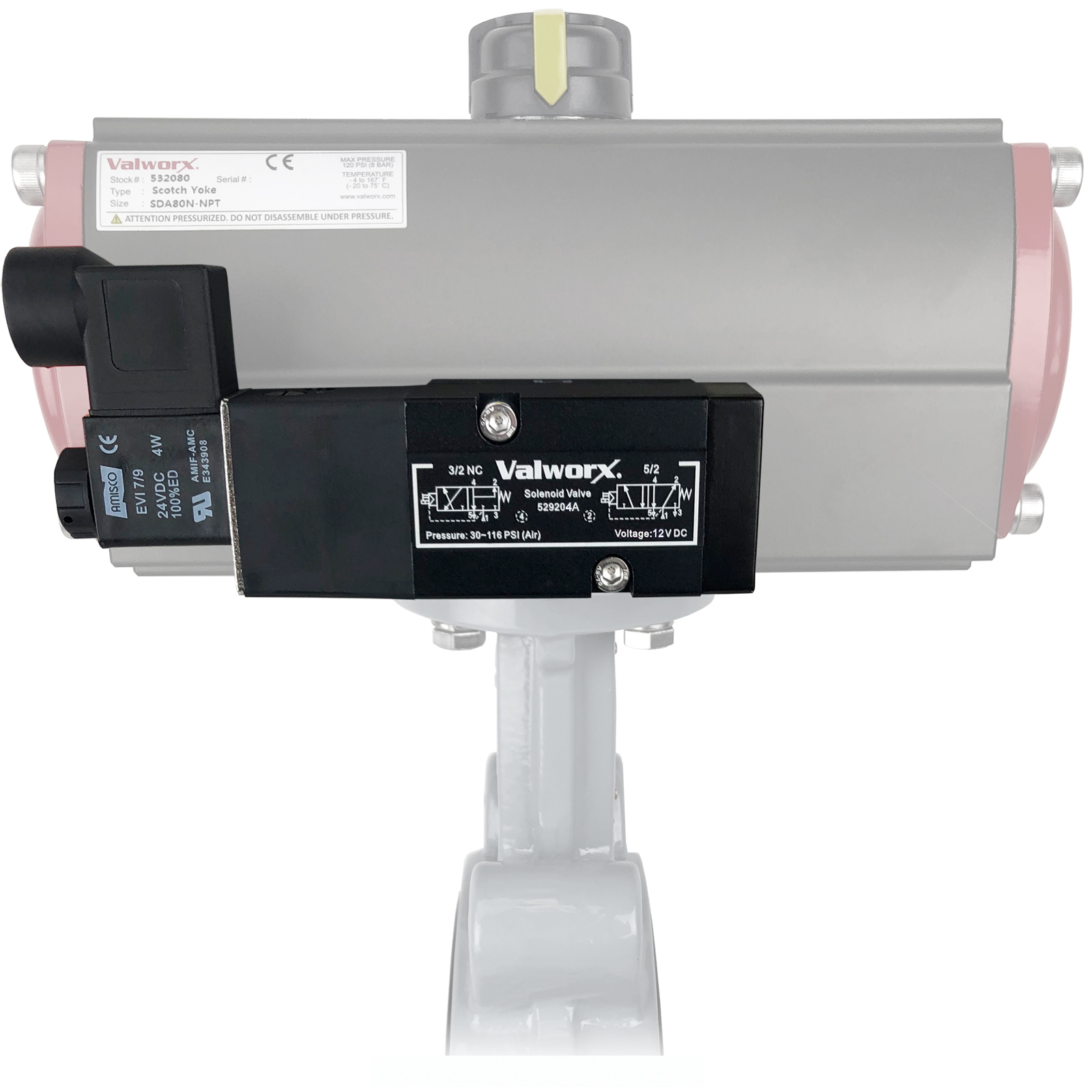

Direct Mount Solenoid Valve 12VDC

Direct Mount Solenoid Valve 12VDC
Stock #:
529204A
Brand:
Valworx
Series:
5292
Mfr Part #:
529204A

List Price: $101.00
Price:
Buy 10 or more for $72.72 each

Usually Ships: Same Day
Free Shipping on orders over $99
  • Description
  • Specifications
  • Accessories
  • Data Sheets
  • CAD
  • Video
  • Repair Parts
Direct mount air solenoid valves can be adapted for 5/2 or 3/2 NC functions for electrically controlling double acting or spring return air actuated valves. Valves mount directly to actuators with the international standard Namur interface saving time, space and plumbing. Compact high flow design includes a black anodized aluminum body with a low wattage molded coil. Unique long life spool and sleeve design can be used with lubricated or non-lubricated compressed air. Twist and lock manual override is useful in operating the valve during setup, testing or power outage situations. Easy to wire 1/2" conduit DIN plug connector with screw terminals is included with each valve. This valve offers excellent environmental protection against the ingress of liquids, dust and other foreign matter. Optional actuator speed controls and mufflers are listed under accessories.

These solenoid valves are PRE-INSTALLED and TESTED when ordered with a Valworx air actuated valve.

Series 5292 solenoid valves are for use on Valworx Scotch Yoke actuators.
Type
3 or 4-way, 2-Position spring return (3/2 NC or 5/2)
Pipe Size
1/4" NPT inlet and (2) exhaust ports
Flow
0.20 orifice, Cv 1.1, 52 SCFM
Construction
Anodized aluminum body, glass filled PA, POM and NBR seals
Pressure (Min-Max)
30-116 PSI (air)
Working Media
40 micron filtered and dried compressed air
Manual Override
Twist and lock
Coil Type
General purpose, class F coil, continuous duty 100% duty cycle
Voltage/Watts
12 VDC, 4 watts
Solenoid Enclosure
IP65 dusttight and weatherproof
Wiring
1/2" conduit DIN Plug connector with screw terminals (included)
Approvals
UL recognized coil - File E343908, CE
Working Temperature
-13 to 176 °F (coil ambient temp. -4 to 122 °F)
  • ISO DIN Plug with 16ft Cable for Solenoid Valves
    ISO DIN Plug with 16ft Cable for Solenoid Valves
    Stock #: 588013
    Price: $27.08
    Buy 10 or more for $24.37 each
    Quantity
  • 3-Conductor Cable for 5291/5292 Series Solenoid Valves- 16ft
    3-Conductor Cable for 5291/5292 Series Solenoid Valves- 16ft
    Stock #: 588011
    Price: $19.34
    Buy 10 or more for $17.41 each
    Quantity
  • Actuator Speed Control - Spring Return
    Actuator Speed Control - Spring Return
    Stock #: 529600
    Price: $56.80
    Buy 10 or more for $51.12 each
    Quantity
  • Actuator Speed Control - Double Acting
    Actuator Speed Control - Double Acting
    Stock #: 529601
    Price: $56.80
    Buy 10 or more for $51.12 each
    Quantity
  • Speed Control Mufflers 1/4
    Speed Control Mufflers 1/4" NPT
    Stock #: 529501
    Price: $3.46
    Buy 24 or more for $3.12 each
    Quantity
  • Brass Exhaust Muffler 1/4
    Brass Exhaust Muffler 1/4" NPT
    Stock #: 529513
    Price: $1.82
    Buy 24 or more for $1.63 each
    Quantity
