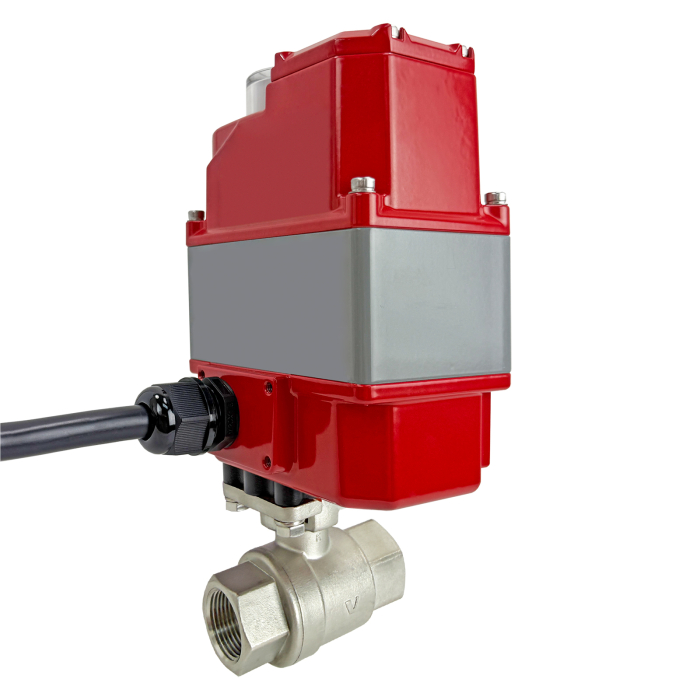

1-1/4" Surpass Stainless Ball Valve 24 VDC, Safe Return
Stock #
591160
Series
5911
List Price: $1,105.00
Price: $884.00
- Buy 3 for $795.60 each
Usually Ships: 4- 6 Weeks
| Type | Electric Actuated 2 Way Ball Valve- On/Off- Safe Return |
|---|---|
| Actuator Voltage | 24 VDC |
| Current Rating | 0.7A (full load amps) |
| Cycle Time | 11 seconds per 90° rotation |
| Duty Cycle | 100% |
| Pipe Size | 1-1/4" NPT female |
| Full Port Orifice Size (inches) | 1.25 |
| Cv | 89.7 |
| Pressure Rating | 1000 PSI (see P/T chart), vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -13 to 149°F (-20 to 65°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Prewired cable, 10 conductors 1 meter (3.2 feet) |
| Valve Position Confirmation | 3 x programmable relays rated 0.8A@110VAC, 1A&30VDC |
| Input Control Signal | Dry Contact |
| Valve Position Indicator | LED Dome Indicator R/Y/G/Bl/White Close/Fault/Open/Mid/End of Stroke |
| Operating Mode | Inching or continuous |
| Speed Control | Programmable |
| Manual Override | 8mm Allen Wrench |
| Motor Protection | Over temp/Over current/Motor stall |
| Anti-Condensation Heater | Thermostatically controlled |
| Max Fluid Velocity | 10 feet per second |
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
-
-
