1/4" Surpass Electric Actuated Stainless Ball Valve 110 VAC, EPS Positioner
Stock #
591202
Series
5912
List Price: $1,189.00
Price: $951.20
- Buy 3 for $856.08 each
Usually Ships: 6- 8 Weeks

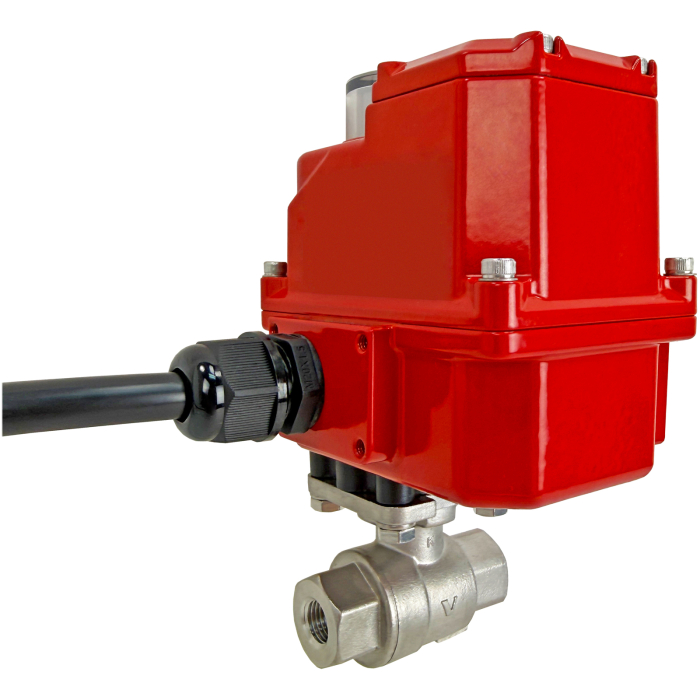

Valworx 591002 electric 2-piece stainless steel ball valve features the Surpass positioning actuator, our most advanced actuator yet. Used for throttling control of water, air, oil, and other media compatible with the materials of construction. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by an analog input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Upon loss of power the actuator stays in last position. Upon restoration of power the actuator will cycle to the commanded position.
The indicator displays current position by solid green (full open), flashing white (partial open), solid blue (mid-span) or solid red (fully closed).
The Surpass actuator can be programmed to operate in continuous mode (a signal pulse triggers continuous operation until full open or close) or inch mode (a signal pulse runs the motor for the duration of the pulse). Default is continuous mode.
Separate motor and control circuits for easier wiring and improved safety. Programmable end-of-stroke speed control to reduce/eliminate water hammer. Local control and operating status via digital display.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Surpass Electric Actuator Standard Features4-20mA control and feedback signals with 105V and 2-10V upon request Control and feedback cables for non-intrusive, simpler wiring Rugged Type 4X weatherproof aluminum alloy enclosure Local operation and valve status via digital display Highly visible multi-color LED position indicator 100% duty cycle Manual override Heavy duty motor with over temp/over current/motor stall protection Thermostatically controlled anti-condensation heater Three programmable relays output 17 different status parameters (default is OPEN/CLOSE/FAULT) Self-locking gear drive with no additional brake required Standard ISO5211 multi-flange valve mounting CSA Listed per UL429 and CSA C22.2, CE mark
The indicator displays current position by solid green (full open), flashing white (partial open), solid blue (mid-span) or solid red (fully closed).
The Surpass actuator can be programmed to operate in continuous mode (a signal pulse triggers continuous operation until full open or close) or inch mode (a signal pulse runs the motor for the duration of the pulse). Default is continuous mode.
Separate motor and control circuits for easier wiring and improved safety. Programmable end-of-stroke speed control to reduce/eliminate water hammer. Local control and operating status via digital display.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Surpass Electric Actuator Standard Features
| Type | Electric Actuated 2 Way Ball Valve- Positioner |
|---|---|
| Actuator Voltage | 110 VAC 50/60Hz |
| Current Rating | 0.32A (full load amps) |
| Cycle Time | 11 seconds per 90° rotation |
| Duty Cycle | 100% |
| Pipe Size | 1/4" NPT female |
| Full Port Orifice Size (inches) | 0.45 |
| Cv | 6.9 |
| Pressure Rating | 1000 PSI (see P/T chart), vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -4 to 149°F (-20 to 65°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Prewired cable with flying leads 1 meter (3.2 feet) |
| Valve Position Confirmation | 3 x programmable relays rated 0.8A@110VAC, 1A&30VDC |
| Input Control Signal | 4-20mA (default), 1-5V, 2-10V upon request |
| Output signal | 4-20mA (default), 1-5V or 2-10V output monitoring signal (same type as input signal) |
| Valve Position Indicator | LED Dome Indicator R/Y/G/Bl/White Close/Fault/Open/Mid/End of Stroke |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Over temp/Over current/Motor stall |
| Anti-Condensation Heater | Thermostatically controlled |
| Max Fluid Velocity | 10 feet per second |
