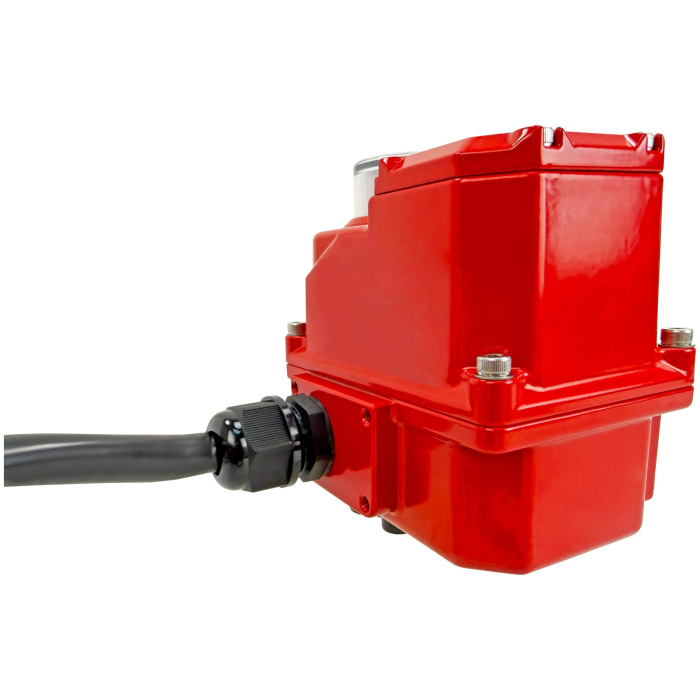

Surpass Actuator 177 in. lbs (20Nm), 110VAC w/EPS

Surpass Positioning Actuator Standard Features

Quarter turn operation with mechanical limits

Rugged Type 4X weatherproof aluminum alloy enclosure

Local operation and valve status via digital display

Highly visible multi-color LED position indicator

100% duty cycle

Manual override

Heavy duty motor with over temp/over current/motor stall protection

Thermostatically controlled anti-condensation heater

Three programmable relays output 16 different status parameters (default is OPEN/CLOSE/FAULT)

Self-locking gear drive with no additional brake required

Standard ISO5211 multi-flange valve mounting

CSA Listed per UL429 and CSA C22.2, CE mark

Valworx 590026 Surpass positioning actuator incorporates several powerful features for reliable feedback and operation. Changing the input control signal results in a corresponding and proportional change in the position of the output drive.

Programmable end-of-stroke speed control to reduce/eliminate water hammer. Local control and operating status via digital display.

Upon loss of power the actuator stays in last position. Upon restoration of power the actuator will cycle to the commanded position.

Valworx Surpass actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Non-intrusive wiring using the included multi-conductor cable.

Actuators are tested to rigorous UL and CSA standards and certified by CSA. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation.
