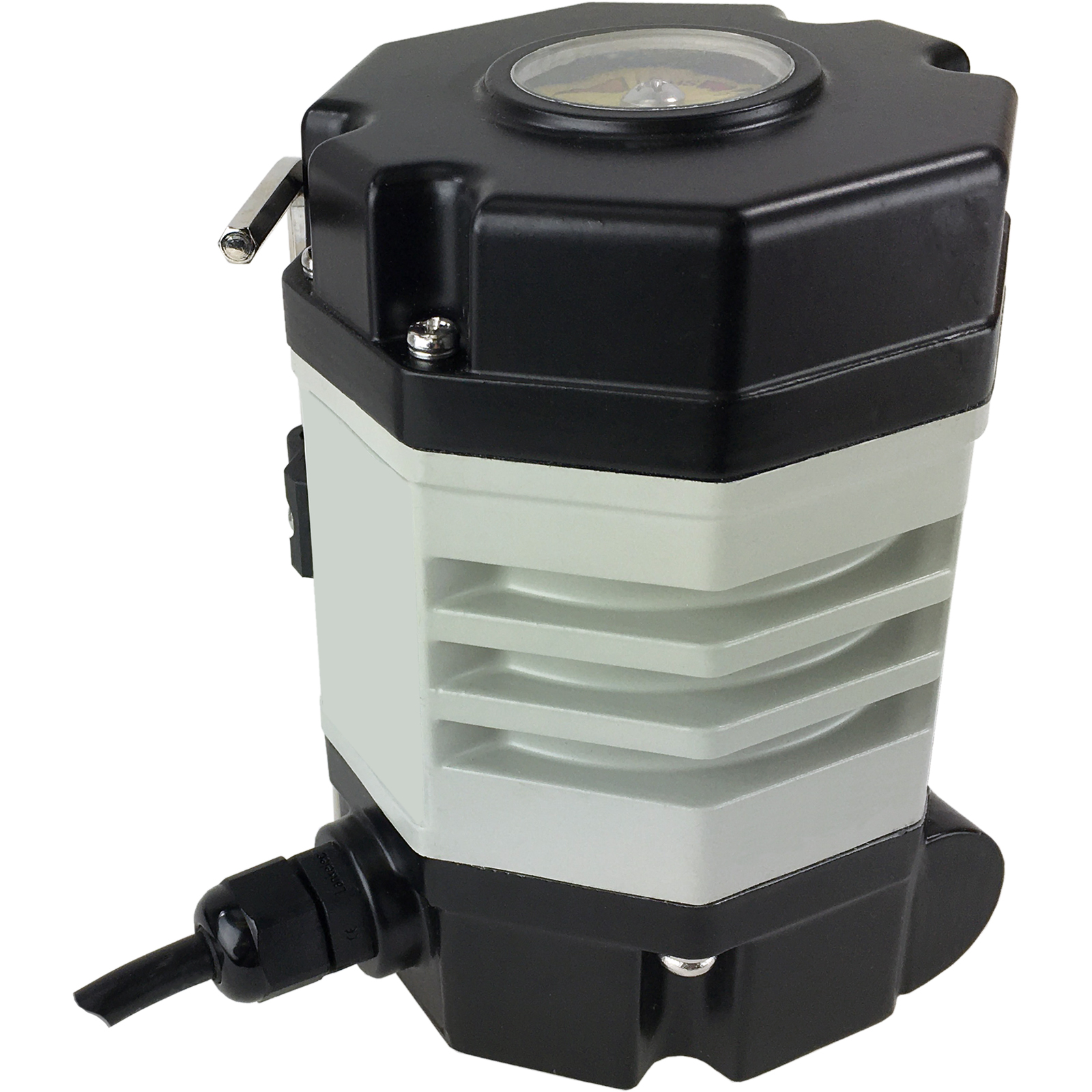

Valworx 561701 electric actuator uses power-to-open (position 1) and power-to-close (position 2), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a rugged all metal gear drive rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA.
|90° (quarter turn)
|160 in lbs (18Nm)
|110 VAC 50/60 Hz +/- 10%
|0.3A (full load amps)
|12 seconds per 90° rotation (no load)
|Aluminum alloy, polyester painted, SS fasteners
|Type 4X and IP67 weatherproof
|5mm hex drive with protective cover
|-22 to 140 °F (-30 to +60 °C)
|Valve Position Confirmation
|2 x SPST auxiliary limit switches 3A @ 125/250VAC, 30VDC resistive load
|F03, F04, F05 (multi-flange)
|11mm double square (female)
|Prewired cable with flying leads 3 meter (9.8 feet)
|CSA Listed. Conforms to UL Std 429 Certified to CSA Std C22.2 No. 139.
