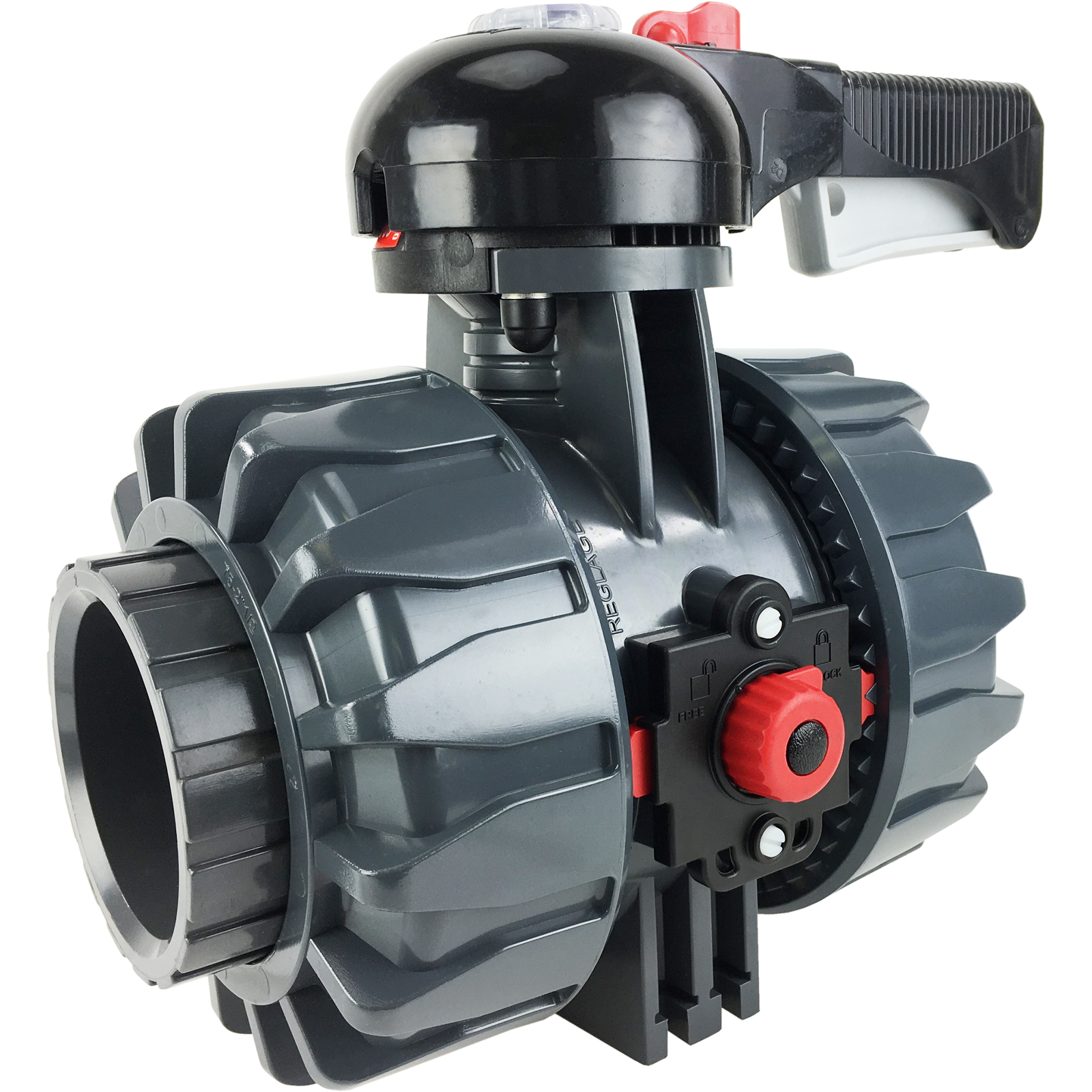

2-1/2" PVC Ball Valve - EPDM/Teflon Seals

Stock #: 551040
Brand: Valworx
Series: 5510
List Price: $446
Price: $356.80
Buy 3 or more for $321.12 each
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 551040 True Union PVC ball valves are typically used for on-off control of water and other media compatible with the materials of construction. Ideal for industrial applications and where NSF certified construction is required for potable/drinking water. Turning the valve one quarter turn rotates the ball from closed to the full open position. Energized PTFE (Teflon) ball seats are used to lower operating torque and extend the cycle life. Dual stem seals and adjustable ball seat carrier contribute to a leak free design. Machined ball and stem connection after molding provides a precision fit. Union nut locking device prevents back-off due to vibration or thermal cycling. These PVC valves are NSF certified safe for use with potable/drinking water. Valves are actuator ready with optional ISO5211 mounting kit.

  • Pressure rated 232 PSI (16 Bar)
  • Full Port for unrestricted flow
  • True Union with Bi-directional flow
  • Energized PTFE ball seats for lower torque and extended life
  • Leak free dual stem seal design
  • Union nut locking device prevents back-off
  • Micro-adjustable ball seat carrier
  • NSF certified for use with potable/drinking water
  • Type PVC Ball Valve
    Pipe Size 2-1/2 inch Socket end connectors
    Port Size Full Port, Cv 368
    Pressure (Max) 232 PSI at 73 °F liquid only, no air or gas (see P/T chart)
    Temperature Range 32 to 140 °F (0 to 60 °C)
    Valve Body PVC (gray)
    Ball PVC
    Stem Seals EPDM (2)
    Ball Seats PTFE (Teflon) energized with EPDM
    • PVC Valve/ Actuator Mounting Adapter
      PVC Valve/ Actuator Mounting Kit, F07
      PVC Valve/ Actuator Mounting Kit, F07 Stock #: 551248
      Usually Ships: Same Day
      Price: $69.60
      Buy 10 or more for $62.64 each
