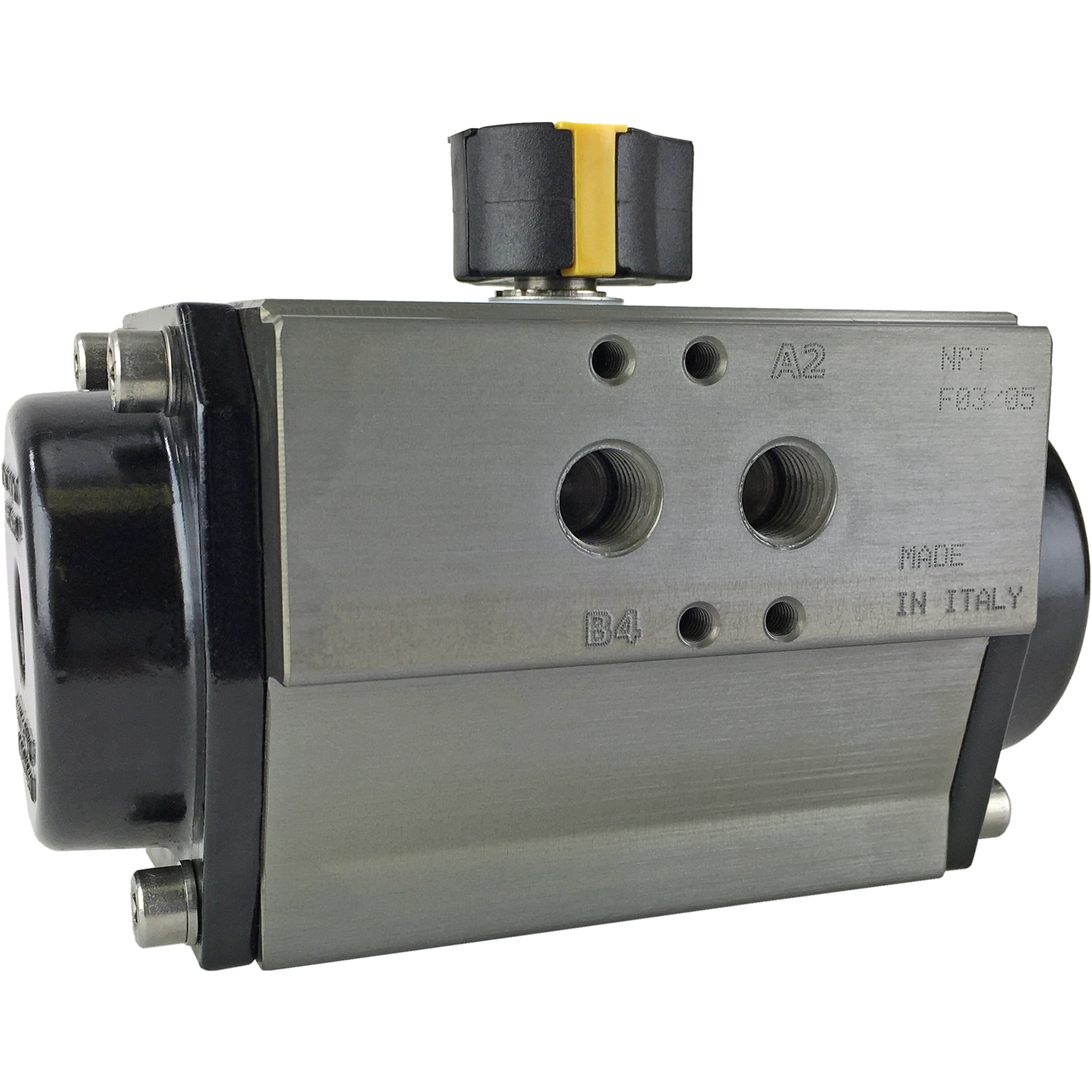

Spring Return Air Actuator SR63

Stock #: 530163
Brand: Valworx
Series: 5301
List Price: $351.00
Price: $280.80
Buy 3 or more for $252.72 each
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 530163 rugged rack and pinion air actuators are typically used to operate quarter turn ball valves, butterfly valves, plug valves and dampers. Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Spring return actuators use air pilot pressure to open and mechanical springs to close when the air is exhausted. The pilot air is typically controlled by a 3-way type manual or solenoid valve.

An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.

Pneumatic Actuator Standard Features
  • Prelubricated and tested to minimum 1 million cycles
  • Rugged rack & pinion design
  • ISO5211 valve mounting pad
  • Multiple precompressed spring cartridges, polyester painted
  • Highly visible valve position indicator
  • Dry or lubricated pilot air
  • Corrosion resistance - 500 hour minimum salt spray test
  • Aluminum body with 50 micron hard anodizing
  • Polyester powder coated aluminum end covers
  • Namur mounting pad for direct mounted solenoid valves
  • VDI/VDE 3845 mounting for top mounted accessories

  • Options (see Accessories tab)
    TypeSpring Return Pneumatic Actuator
    Torque116 inch lbs @ 80 PSI see torque chart (15.9 Nm @ 6 Bar)
    Rotation90° (quarter turn)
    Pilot MediaFiltered, dry or lubricated compressed air
    Pilot Air Pressure120 PSI max. (8 Bar)
    Pilot Air Connections1/4" NPT
    Pilot Solenoid MountingNamur mounting pad per VDI/VDE 3845
    Valve Mounting ISO5211F03/F05
    Output Drive 11mm female double square
    BodyASTM 6063 extruded aluminum, 50 micron anodizing
    End CoversASTM B179 aluminum, 60-80 micron polyester coating
    ShaftCarbon steel, 20 micron nickel plated
    Position IndicatorGlass filled polyamide
    Temperature Range -4 to 180 °F (-20 to 82 °C)
    Rotation Adjustment+/- 5° each direction
    Top Accessory MountingNamur mounting per VDI/VDE 3845
    Enclosure ProtectionIP67 Weatherproof
    • Direct Mount Solenoid Valves
      Direct Mount Solenoid Valve 120V 50/60Hz
      Price: $94.40
      Buy 10 or more for $84.96 each
    • Direct Mount Solenoid Valve 24 VDC
      Price: $94.40
      Buy 10 or more for $84.96 each
    • ISO DIN Plug with 16ft Cable for Solenoid Valves
      Price: $27.08
      Buy 10 or more for $24.37 each
    • Limit Switch
      Actuated Valve Limit Switch IP67/NEMA 4X
      Price: $132.00
      Buy 6 or more for $118.80 each
    • Valve Positioner
      Electro-Pneumatic Positioner 4-20mA Input
      Price: $504.80
      Buy 3 or more for $454.32 each
    • Pneumatic Valve Positioner 3-15 PSI Input
      Price: $404.00
      Buy 3 or more for $363.60 each
